Product Overview

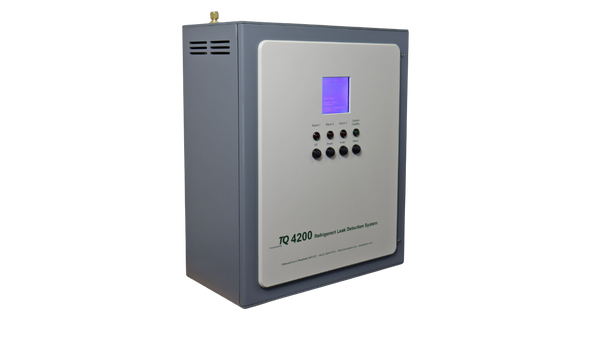

The TQ Environmental TQ 4200 Refrigerant Leak Detection System is an advanced and expandable detection system for refrigerant leaks, specifically designed for industrial and maritime applications. The system uses infrared technology for accurate and rapid detection of various refrigerants, including HFCs, HFOs, and natural refrigerants. The TQ 4200 features a modular design and is available in 8-, 16-, or 24-channel configurations, allowing multiple detection points to be centrally monitored. With features such as automatic zeroing, alarm thresholds, fault warnings, and a clear display with logging capabilities, the system is highly suitable for critical environments such as engine rooms, refrigeration systems, and storage areas. It integrates easily into existing networks and complies with F-gas management requirements.
What is it?
The TQ Environmental TQ 4200 is an advanced refrigerant leak detection system designed to monitor multiple zones simultaneously (up to 8 channels). It provides reliable detection of refrigerant gas leaks in commercial and industrial environments, such as cold storage facilities, data centers, supermarkets, and HVAC systems.
How does it work?
The TQ 4200 uses advanced infrared and/or electrochemical sensors to accurately measure a wide range of refrigerants, including HFCs, HFOs, and ammonia. Each channel can be individually configured through an intuitive user interface on the built-in display. Alarm signals can be transmitted to building management systems (BMS) via relays, Modbus, or other communication protocols. Thanks to its modular design, users can easily add or replace sensors as needed.
What problems does it solve?
Undetected refrigerant leaks are harmful to the environment, increase operational costs, and can pose safety risks, particularly with ammonia. The TQ 4200 helps prevent these issues by enabling early leak detection. This allows users to take timely action, reduce downtime, and comply with environmental regulations such as the F-gas regulation.
Dimensions
-
Weight: 10 kg
-
Height: 200 mm
-
Width: 370 mm
-
Length: 470 mm
Power Supply
-
Input Voltage: 254 V AC
-
Power Consumption: 250 A
-
Maximum Switching Current: 2 A
-
Power Input: 240 V
Time & Durability
-
Lifespan: 7–10 years
-
Warranty: 12 months
-
Protection Rating: IP45
